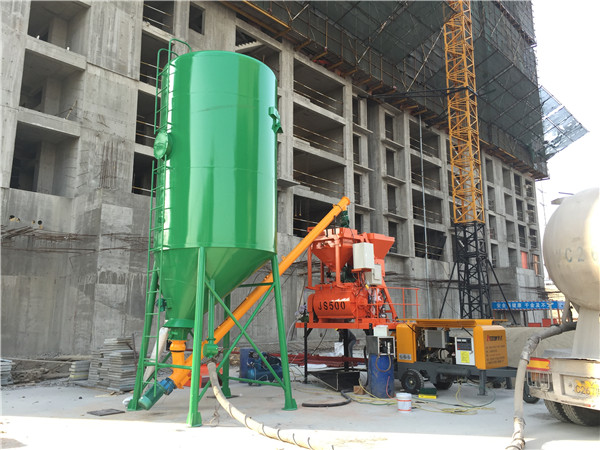

132 5809 5955JS系列搅拌机简介：
1、 提升斗上料，角度大，占地面积小适用于中小型工程；
2、 粉料计量系统单元化时间，便于检修，计量准确；
3、 产品系列化程度高，简洁大方，组装简便，转场方便；
技术参数：
| Model | JS500 | JS750-3.8 | FJS1000-3.8 | JS1000-3.8 | JS1500-3.8 | JS1500-3.8 | |
| Feeding capacity (L) | 800 | 1200 | 1600 | 1600 | 2400 | 2400 | |
| Discharging capacity (L) | 500 | 750 | 1000 | 1000 | 1500 | 1500 | |
| Theoretical productivity (m3 /h) | 25 | 35 | 50 | 50 | 75 | 75 | |
| Aggregate (pebble/gravel) mm | 80/60 | 80/60 | 80/60 | 80/60 | 80/60 | 80/60 | |
| Mixing blade | Amount | 2×7 | 2×8 | 2×8 | 2×8 | 2×10 | 2×4 |
| Mixing motor | Model | Y180M-4 | Y200L-4 | Y2-200L2-6E | Y225S-4 | Y200L-4 | Y225M-4 |
| Power (kW) | 18.5 | 30 | 2×22 | 37 | 2×30 | 45 | |
| Winch motor | Model | YEZ132S-4 | YEZ132M-4 -B5 | YEZ160S-4 | YEZ160S-4 | YEZ180M-4 | YEZ180M-4 |
| Power (kW) | 5.5 | 7.5 | 11 | 11 | 18.5 | 18.5 | |
| Water pump | Power (kW) | 0.75 | 1.1 | 3 | 3 | 3 | 3 |
| Dimension (L×W×H）mm | Transportation | 3030×2300×2680 | 4150×2250×2280 | 5250×2250×2350 | 5250×2250×2350 | 5650×2250×2510 | 5650×2250×2510 |
| Working | 4486×3030×5280 | 8320×3580×9550 | 8890×3600×10120 | 8890×3600×10120 | 9730×3630×9730 | 9730×3630×9730 | |
| Unloading height (mm) | 1500(2700/380) | (1500/2700)3800 | (2700)3800 | (2700)3800 | (2700)3800 | (2700)3800 | |
